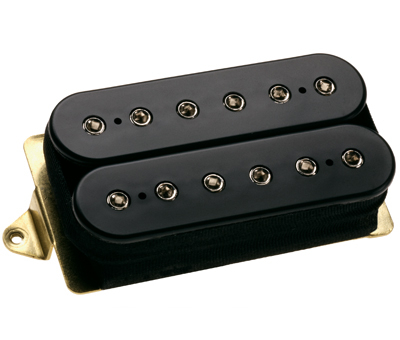

Dual Sound® DP101 & DP101F
Take a Super Distortion® add a mini-switch and 4-conductor wiring for parallel and single-coil operation and you have the Dual Sound®.The extra flexibility puts cleaner,crisp tone choices at your control. Lighten up on the lead tone in parallel operation, then roar back in with the standard series position.Use the single-coil mode along with the neck or middle pickup for chopping rhythm tones. If you need brighter, more transparent sounds from your bridge or neck pickup without sacrificing wide, singing crunch, the Dual Sound® nicely fills the bill
Recommended For:
Bridge position on solidbody guitars.
Tech Talk:
The Dual is the original 4-conductor version of the Super Distortion®. Originally, the main purpose of 4-conductor wiring was to switch from series to parallel modes. It is now popular in bridge position H-S-H pickup arrangements, where it can split to single-coil in combination with a middle position pickup like the Blue VelvetTM. This combination creates very Strat®-like sounds, because the warm tone and high output of the Dual allow single-coil mode to balance with most single-coils.
Specifications:
Wiring Standard four conductor Magnet Ceramic Output 425mV DC Resistance 13.68K Year of introduction 1974
