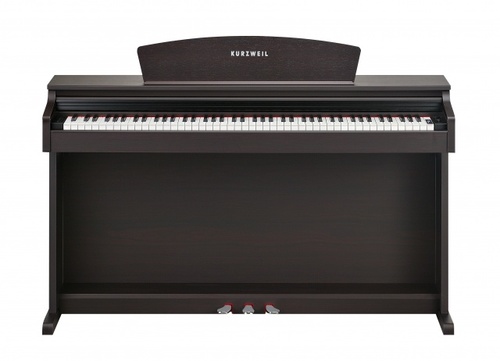

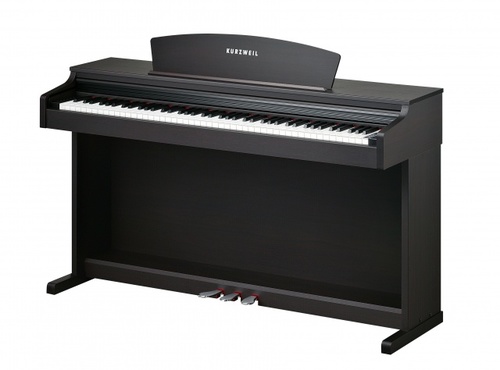

M230 Features & Specs
All specifications subject to change without notice.
Keyboard: 88-Note, fully weighted, graded hammer action with adjustable touch sensitive keys (LK-70M)
Keyboard Sensitivity: 10 selectable response levels
Display: 5x7 Dot scrolling matrix LED
Voice Type: Stereo PCM
Polyphony: 128 voice
Preset Programs: 30
Rhythms:30
Play Mode: Splits, Layers, Dual
Demo Songs: 50 Piano Masterpieces
General MIDI: No
Transpose: Yes
Tune: Yes
Metronome: Yes
Recorder/Sequencer: 1-Track; 20,000 note capacity
Education Mode: Bayer, & Czerny 100, 30, 40, Sonatine
Audio Power: 20W x 2, 8 Ohms
Speaker: 6.5" x 2
Audio Outs: Stereo left/right RCA line outs (for connecting to external amplification)
Audio Ins: Stereo left/right RCA line ins (for connecting external sound sources)
(1) 1/8" stereo MP3 IN
(1) 1/4" MIC Input
Headphones: (2) 1/4" stereo headphone outs
MIDI I/O: MIDI In and Out connectors
USB: (1) port; "Plug and Play" USB functionality allows MIDI over USB for connecting to/from an external computer sequencer; no software driver needed
Bluetooth: Yes
Pedals: (3) built-in switch-type sustain, sostenuto, soft
Finish: Simulated Rosewood or White
Dimensions: 55.12"(W) x 18.50" (D) x 33.46" (H)
1400mm (W) x 470mm (D) x 850mm (H)
Bench: Matching bench included
Weight: 123.5 lb. / 56kg
Power: 90-250V AC free voltage external power supply; 24V 2.5A DC
