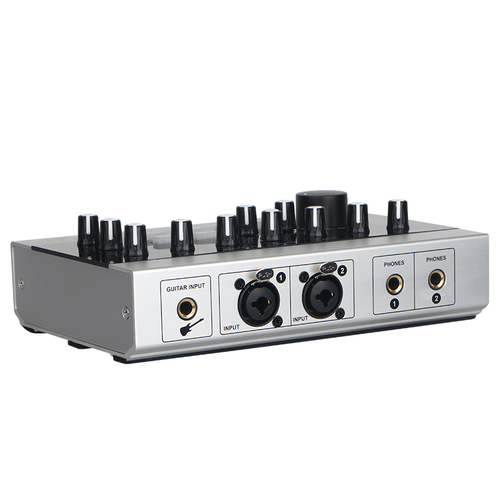

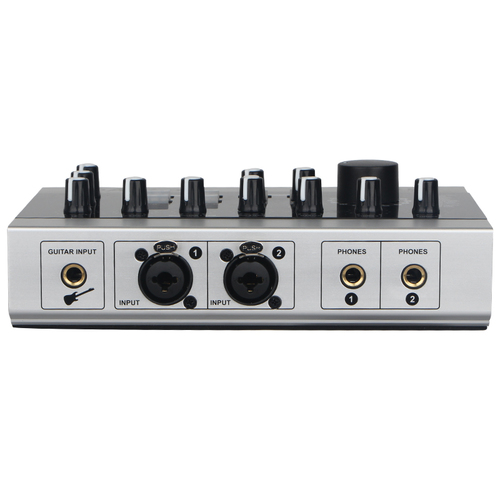

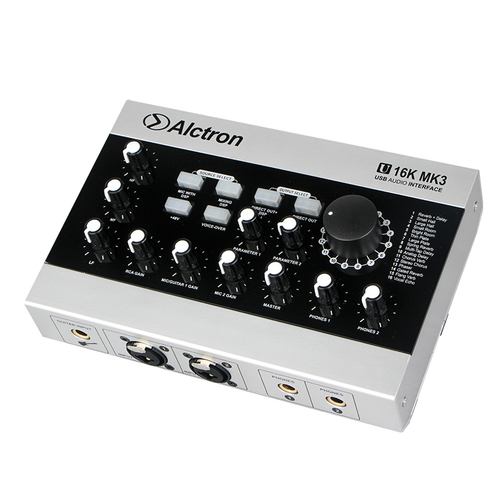

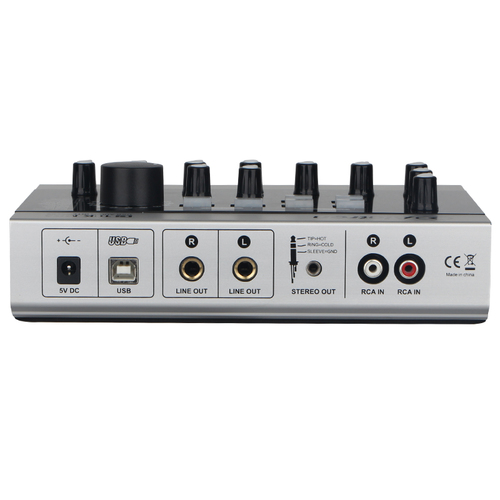

U16K MK3 USB audio interface
1、Without any drivers, just plug and play
2、Built-in a 48V phantom power
3、16 different working modes
4、Provides different working mode and recording effect
、USB audio interface with 24Bit/96KHz performance chip
2、Used for online singing, mobile phone singing, personal recording, online chatting etc
3、Without any drivers, just plug and play
4、Built-in a 48V phantom power
5、16 different working modes
6、Provides different working mode and recording effect
| Specification: |
|
| Mic input |
|
| * Frequency response: |
22Hz to 50kHz (+/-0.2db) |
| * Dynamic Range: |
90dB, A-weighted |
| * Signal-to-Noise Range: |
-90dB, A-weighted
|
| * THD+N: |
<0.0061% (-86dB) |
| * Crosstalk: |
-85dB @ 1kHz |
| * Input Impedance: |
Mic in: 1.8K Ohms, typical |
| * Adjustable Gain: |
+39dB |
| * Sampling rate: |
24bit/96KHz |
| Line inputs (rca in, unbalanced) |
|
| * Frequency response: |
22Hz to 20kHz (+/-0.2db) |
| * Dynamic Range: |
90dB, A-weighted |
| * Signal-to-Noise Range: |
-90dB, A-weighted |
| * THD+N: |
<0.003% (-86dB) |
| * Crosstalk: |
-90dB @ 1kHz |
| * Input Impedance: |
Mic in: 10K Ohms, typical |
| * Adjustable Gain: |
+8dB |
| Inst input |
|
| * Frequency Response: |
22Hz to 20kHz (+/-0.2db) |
| * Dynamic Range: |
90dB, A-weighted |
| * Signal-to-Noise Range: |
-90dB, A-weighted |
| * THD+N: |
<0.0061% (-86dB) |
| * Crosstalk: |
-75dB @ 1kHz |
| * Input Impedance: Mic in: |
500K Ohms, typical |
| * Adjustable Gain: |
+38dB |
| Headphone outputs |
|
| * Frequency Response: |
22Hz to 20kHz (+/-0.2db) |
| * Power into Ohms: |
20 mW into 100 Ohms |
| * THD+N: |
<0.06% (-66dB) |
| * Crosstalk: |
-90dB, A-weighted |
| * Load Impedance: |
32 to 600 Ohms |
| * Sampling rate: |
16bit/48KHz |
