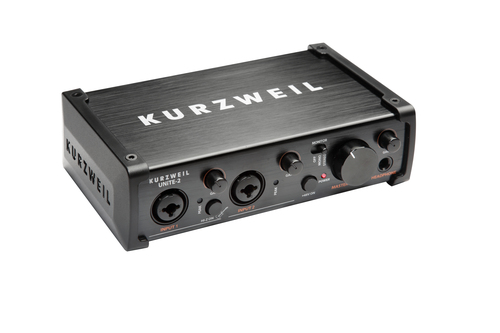

Two Input, Two Output USB 2.0 Audio Interface.
Two combo microphone/line inputs (with +48V phantom power support) and 1 switchable Hi-Z instrument input.

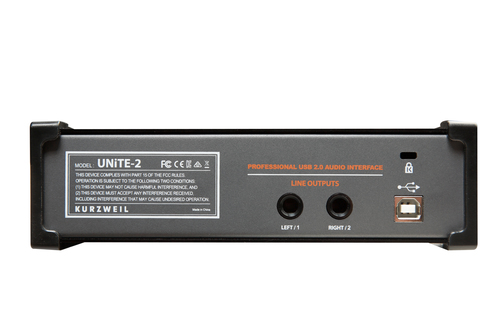

Individual L/R outputs via balanced 1/4″ TRS connectors. Front panel headphone output with stereo 1/4″ connector.
24-bit / 96kHz AD/DA converters.
Bus-powered, full speed USB 2.0. No external power connection required.

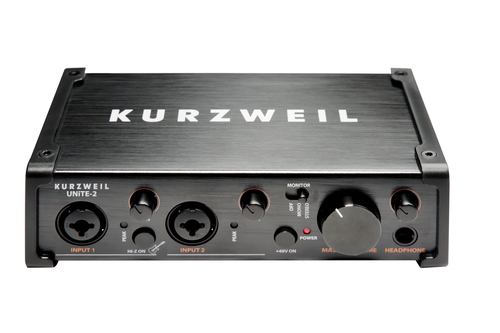

Intuitive and convenient front panel controls for channel input gain (with peak indicators), monitor, phantom power on/off, headphone and master volume.
Cross-platform compatibility for Windows (7, 8.1, 10 with ASIO 2.0, MMe, WDM and DirectSound), Mac OSX* (10.7 and above via the native CoreAudio USB Audio driver)
(*no driver install required)
Bitwig Studio 8-Track is the sketch pad for your musical ideas.
All specifications subject to change without notice.
1 switchable Hi-Z instrument input
1 1/4″ headphone output
-Mac OS X 10.7 (and above) via CoreAudio (no driver install required)
