For over a decade, Antelope’s legendary OCX Master Clock has been a dominant force in the audio world.
This legacy now continues with the newest master clock by Antelope Audio – Isochrone OCX HD.
Antelope Audio game-changing 4th gen ACF jitter management algorithm
OCX HD can output five different sample rates
AES/EBU, S/PDIF clocking outs up to 192kHz, video in on BNC and Atomic clock Input
OCX HD raises the bar yet again, delivering sample rate support of up to 768 kHz, Antelope’s best-in-class 4th generation Acoustically Focused Clocking (AFC) jitter management algorithm and oven-controlled crystal oscillator.

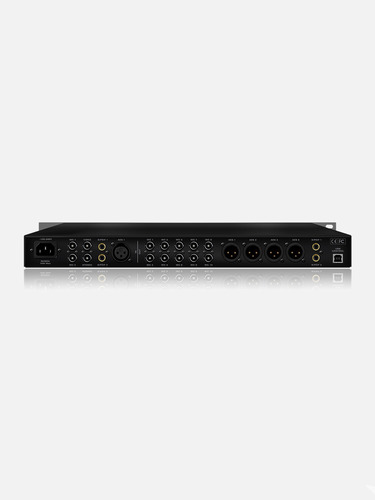

OCX HD Master Clock offers a great variety of clocking options – 10 configurable in pairs Word Clock Outputs on BNC, four AES/EBU Outputs and two more on S/PDIF. This vast assortment of connectivity makes the OCX HD the most versatile audio master clock on the market, while proven, proprietary clocking technology delivers the most musical and reliable audio sync generation on the market.
Additionally, OCX HD offers two Word Clock Inputs and a Video Sync Input, which can resolve to a huge variety of SD and HD formats, as well as clock distribution with gear-boxing, and pull-up and pull-down rates, as featured in the triple clock powerhouse, Trinity Master Clock. A 10 MHz Input allows for syncing with Antelope’s newest Atomic Clock – 10MX.
Antelope’s latest master clock benefits from flexible firmware update functionality, as featured in all new-generation Antelope products, allowing for fast and easy firmware updates on the user-friendly software control panel, available for both OS X and Windows.
The desktop app provides convenient remote control to simplify project workflow. The device is also easily configurable from an elegant front panel, which will add a futuristic aesthetic to any gear rack.
32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768kHz
10x Word Clock Outputs up to 768kHz
4x AES/EBU Outputs up to 192kHz
2x S/PDIF Outputs up to 192kHz
2x Word Clock Inputs up to 768kHz
1x Video Input accepting wide range of SD and HD video signals
1x Atomic Input
2x S/PDIF Inputs up to 192kHz
1x AES/EBU Input up to 192kHz
1x USB Input for control
30 – 80% RH non-condensing
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
< +/-0.001 ppm
<+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F
< 1 ppm per year
1 x 10M Atomic Clock Input @ 75 Ohms 3Vpp on BNC
32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768 (kHz)
0 – 50°C, 32-122°F
2.65 kg/5.84 lb
482.6 (W) х 230 (D) х 44 (H) mm
19 (W) x 9.05 (D) x 1.75 (H) inch
AC Universal Input ~95-245V, 20 Watts Max
