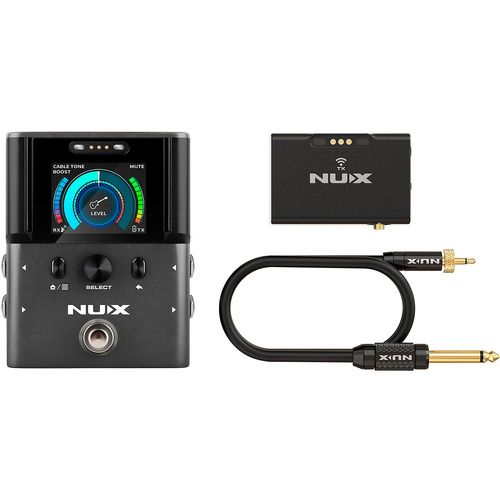

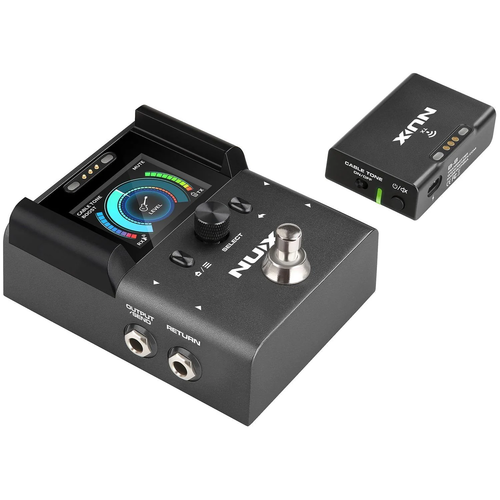

Professional wireless Redefined!
NUX B-8 is a redefined wireless system with automatic setup, 2.4 GHz interference-free broadcasting frequency, and 24-bit 48 kHz high-quality audio transmitting. The signal transmitting latency is as low as 2.5ms at the best performance. The operation range is up to 50 meters (160-feet).
igh quality audio 2.4 GHz broadcast
B-8 Wireless delivers the signal on 2.4 GHz frequency range. That's a global interference-free broadcasting range you can use everywhere without a signal break. With the 24-bit 48 KHz audio quality you will never experience unwanted sound degradation.
Specifications:
Operating Frequency Band: 2400-2483.5MHz
Audio Quality: 24bit/48kHz
Frequency Response: 20Hz-20kHz
Latency: 2.5ms(best performance setting)-8.7ms(safety mode)
Input Impedance:1 MΩ
Maximum Input Level: 1 kHz at 1% THD +6.2 dBV (5.78 Vp-p)
THD+N: 0.01% 1kHz, typical
Dynamic Range: 122dB, A-weighted(OUTPUT/SEND)
Output level Adjustment Range: mute -64dB~0dB
Auto-sleep Mode: N/A
Built-in Battery Capacity: 3.7V/500mAh Rechargeable Li-polymer (Transmitter)
TX Battery Life: up to 6.5 hours
Power Requirements: 7V to 12V DC, 500mA min, negative tip power supplies(Receiver)
Operation Range: Up to 50 m (165 feet) maximum
TX dimesions: 72.5mm*49.3mm*23mm (L*W*H)
TX weight:63g
RX dimensions: 122*95*60mm (L*W*H)
RX weight: 500g
Long distance，Low latency
With the latest transmitting technologies, the B-8 wireless system has the best performance for musicians. The operation range is up to 50 meters (160-feet). And, the latency is as low as 2.5ms when you set the transmitting at LOW LATENCY.
To achieve the best performance, you can adjust the transmitting parameter between LOW LATENCY and STABLE.
To achieve the best performance of transmitting, please fix the TX on your strap and use it as below. In this way the TX will have a distance from your body, which is good for transmitting.

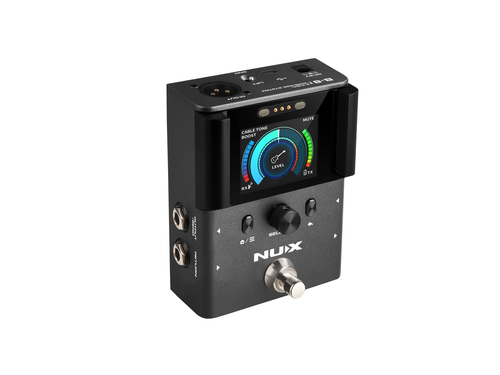

Built-in booster & tuner
It also comes with a build-in booster and well-designed digital tuner with Chromatic, Guitar Standard, Guitar Compensated, Bass tuning modes, which are very useful for musicians to perform with on stage.

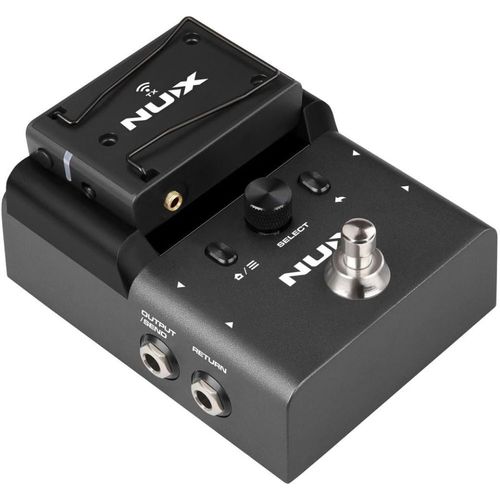

Send/return for routing
With the 1/4”OUTPUT/SEND jack, you can loop your effect pedals to RX with this jack for SEND (send the signal to your effect pedals), and loop your effect pedals to RX with the 1/4”RETURN jack for RETURN (return the signal to from your effect pedals to the RX).
