OPUS HIGHLIGHTS•The ultimate pedal platform Amp Sim and DynIR™ Engine powered by Tube-Stage Modeling™ (TSM™)technology
10 pristine TSM™ Preamp emulations
Exquisite TSM™ Poweramp simulation with 4 tube amp models (6L6, EL34, EL84 and KT88), Pentode /Triode, Push-Pull (PP) ‘Class AB’, or Single Ended (SE) ‘Class A’ power amps
On-board DynIR™ Engine for class-leading cabinet simulation with dual-miking facilities, 8 microphonesper cabinet and 12 room emulations
Pro-grade suite of essential DSP-powered processors and effects including an EQ, Enhancer, NoiseGate and Reverb
Pre-loaded with the OPUS-Series DynIR Cabinet Collection featuring 32 Cabinets including capturesfrom Steve Stevens, Dave Friedman, Pete Thorn, George Lynch and Phil X
99 preset locations and an exclusive collection of 40+ artist-series presets from the likes of Pete Thorn,Michael Nielsen, Jack Gardiner, Tom Quayle, Adam Steel, John Browne, Jay Leonard Jay and more(available as downloads upon product registration)
Wireless Bluetooth® and USB integration with Torpedo Remote (iOS, Android, MacOS, Windows) forexpert-level tone shaping, preset management and real-time auditioning of 600+ DynIR Cabinets
MIDI input for seamless assimilation into existing set-ups; MIDI breakout cable included
Dual Static IR Loader and Acoustic DI with 40+ premier Acoustic Impulse Responses included
USB-C connectivity for future-proofed rapid data transfer
Compact ultra-portable footprint and rugged, road-ready metal chassis
Includes GENOME complete with 5 DynIR™ Captures, 40 Microphones, 12 PEDALS, 12 TSM™Amplifiers, 17 STUDIO FX, 40 AI Amp Captures and an expertly curated RIG library for immediatecreative potential from the get go!Multi-Channel Amp Sim, DynIR™
THE NEXT EVOLUTIONIntroducing OPUS, an end-to-end tone shaping Amp Simulator and DynIR™ Engine ushering-in the nextmilestone-evolution of the Two notes ecosystem. Building upon the C.A.B. lineage - and our critically-acclaimed digital cabinet simulation legacy - OPUS adds Pre- & Power-amp Tube-Stage Modeling™ (TSM™),MIDI integration and a future-proofed USB-C specification, empowering players of all- walks with apex-level tone in a go-anywhere footprint.For deft ease-of-use, Torpedo Remote (iOS/Android/MacOS/Windows) serves as the nexus of your toneshaping experience; simply hookup to your Phone, Tablet or Desktop and experience liberated 1:1integration with every editable parameter in the OPUS architecture. Tonally, everything you demand froma state-of-the-art digital Amp Sim is here; whether it’s a thundering high-gain onslaught, a sublime cleanprimed to serve as the foundation of a pedalboard rig or a mojo-fuelled brit-inspired roar, each and everybase is covered. OPUS, it’s more than our masterpiece: it’s a back-line in your gig-bag and a macrocosm ofnext-level tonal excellence.

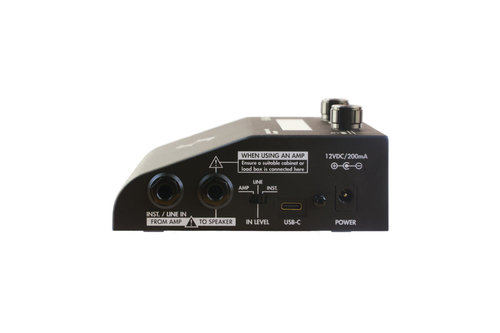

Input / Output
Amp/Inst/Line Input: 1/4″ jack unbalanced (TRS)
Input Impedance:
AMP :160kΩ unbalanced / 300kΩ balanced
LINE : 37kΩ unbalanced / 55kΩ balanced
INST. : 1MΩ unbalanced
Max Level (No Input Pad):
AMP: 26.1dBu
LINE: 11.3dBu
INST.: 2.8dBu
Max Level (With Input Pad):
AMP: 36.2dBu
LINE: 20.8dBu
INST.: 12.3dBu
Max Admissible Power For Amplifier Connection:
“IN LEVEL” Switch Set To “AMP”
“TO SPEAKER” output connected to a speaker rated at 16Ω
No input pad: 15.2W
With input pad: 100W
“TO SPEAKER” output connected to a speaker rated at 8Ω
No input pad: 30.3W
With input pad: 100W
“TO SPEAKER” output connected to a speaker rated at 4Ω
No input pad: 60.5W
With input pad: 100W
Aux In:
1/8″ (3.5mm) TRS jack
Input Impedance: 29kΩ
TO SPEAKER Output*:
1/4″ Jack balanced (TS)
*Unprocessed, unbuffered
DI Output*:
XLR balanced
Max level: 10dBu
Output Impedance: 600Ω
*Protected against +48V phantom power
Line Output*:
1/4″ (6.35mm) TRS jack
Max level: 10dBu
Output Impedance: 600Ω
*Not Protected against +48V phantom power
Headphone Output*:
1/8″ (3.5mm) TRS jack
Max output power: 300mW under 100Ω
Output impedance: 33Ω
USB Connector: USB-C 2.0
Memory
DynIR Capacity: 64 DynIR
Memory Card: 256Mb Micro-SD included Up to 32Gb cards supported
Digital Audio
AD/DA Converters: Studio-grade 24-bit / 96 kHz
Bandwidth (-1dB): 30 Hz – 19 kHz
Dynamic Range ratio: 101dB
Internal Processing: 32-bit floating-point
Latency: 2.2 ms (Line Input to Line Output)
Power
Power input connector:
Connector: 2.1mm x 5.5mm
Polarity: Center negative
Voltage: 12V DC
Current: 200mA
Power consumption: approx. 2W
Supplied adapter:
Connector: 2.1mm x 5.5mm
Polarity: Center negative
Input Voltage: 100-240V AC , 50-60Hz
Output Voltage: 12Vdc
Max. Current: 2000 mA
Dimensions & weight
Width x Depth x Height*: 12.1cm x 10cm x 6cm – 4.8″ x 4″ x 2.4″
*Including connectors and knobs
Weight:
450 g / 0.99 lbs
