The Dynaudio nearfield experience.
The BM 6A features an electronic 4th order phase-aligned crossover with a crossover point at 2.2kHz, which feeds two high performance discrete MOSFET amplifiers rated at 100W each.
The low frequency section is driven by a low frequency equalizer offering a choice between extended, critical damped response or more conventional higher Qt response for more level but less low frequency output. Included in the electronics is a complex protection circuit, which helps to prevent accidental damage to the drivers, yet still providing maximum transient response.

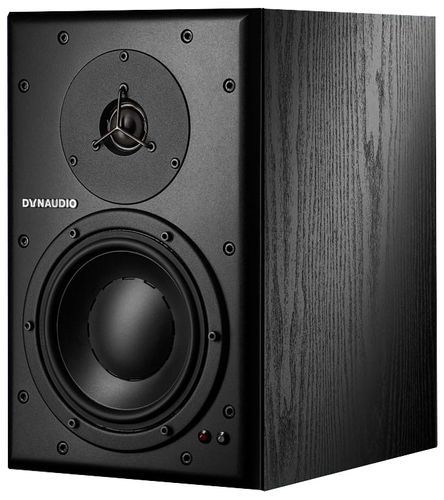

The BM 6A is housed with an elegant matte cabinet with radius edged construction on the front baffle to reduce boundary effects and improve overall sound quality.
Specifications
Status: Current
Segment: Pro
Series: BM
Type: Nearfield Monitor
Analog inputs: XLR
Maximum SPL (1m, pair): 118
Amplifier Power Woofer (W): 100
Amplifier Power Tweeter (W): 100
AC Power Input: 100-240V 50/60Hz
Max Power Consumption (W): 200
Lower Cutoff (Hz @85 dB +/- 3 dB): 41
Upper Cutoff (kHz @ 85dB +/- 3 dB): 21
Box Principle: Rear-loaded bass reflex
Crossover: 2-way
Crossover Frequency (Hz): 2200 Hz
Tweeter: 1,1in soft dome
Midrange/Woofer: 6,5in MSP
Weight kg: 11
Weight lbs: 24 2/8
Width mm: 217
Height mm: 338
Depth mm: 321
Width inches: 8 4/8
Height inches: 13 2/8
Depth inches: 12 5/8
Speakers per pkaged box: 1
