LYD 7

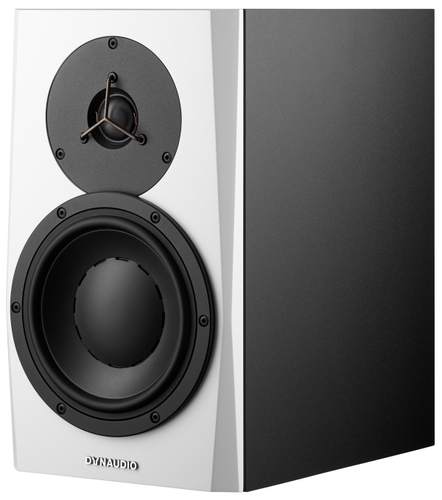

Versatile, powerful and precise – exactly as they should be. A 7in personal reference monitor, designed from the ground-up to bring supreme precision to your mixes.

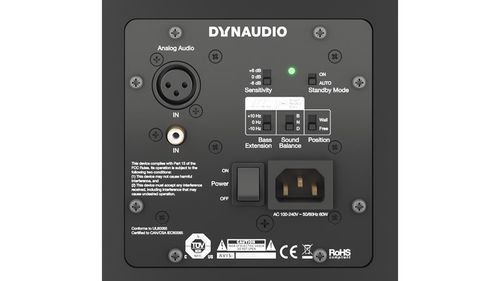

This monitor uses sophisticated DSP to extend or its curtail low-frequency response by 10Hz, while Position and Sound Balance controls let you fine-tune for total neutrality in your environment. Its larger 7in woofer helps extend bass, while the low-mass aluminium voice-coil, vented ferrite magnet and MSP driver take care of precision.
Specifications
Status: Current
Segment: Pro
Series: LYD
Type: Nearfield Monitor
Analog inputs: XLR, RCA
Maximum SPL (1m, pair): 109
Amplifier Power Woofer (W): 50
Amplifier Power Tweeter (W): 50
AC Power Input: 100-240V 50/60Hz
Max Stand-by Power Consumption (W): 0.5
Max Power Consumption (W): 100
Lower Cutoff (Hz @85 dB +/- 3 dB): 55
Upper Cutoff (kHz @ 85dB +/- 3 dB): 21
Box Principle: Rear-loaded bass reflex
Crossover: 2-way DSP-based
Crossover Frequency (Hz): 4300 Hz
Tweeter: 1.1in soft dome
Midrange/Woofer: 7in MSP
Weight kg: 8
Weight lbs: 17.6Width mm: 186
Height mm: 320
Depth mm: 296
Width inches: 7 3/8
Height inches: 12 5/8
Depth inches: 11 5/8
Speakers per packaged box: 1Finishes: Black Satin, White Satin
