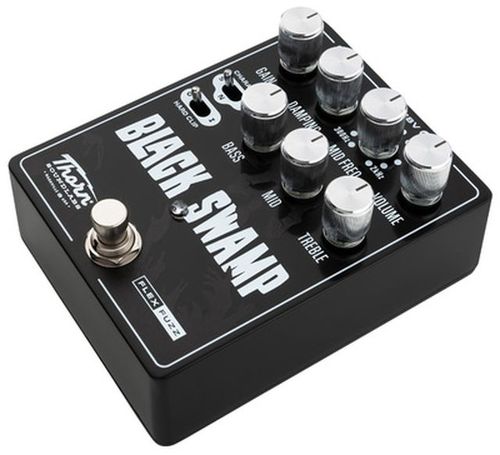

THORN Black Swamp - Flex Fuzz
The Thorn Black Swamp – Flex Fuzz has the control and versatility always desired. In addition to the Volume, gain, and 3 band EQ,
you can now cut/boost specific mid frequencies, and the damping knob, tightens up the low end. These, of course help keep you heard in the mix,
but we’ve also equipped the Black Swamp with two toggle switches. Character S/N/H (Smooth / Normal / Hot) lets you choose between different fuzz character settings,
while the Hard Clip O/I switch allows you to toggle between soft and hard clipping for varying degrees of distortion.
All together this allows for great edge of break up tones at one end, world ending doom tones at the other, and an infinite amount of range in between,
making The BLACK SWAMP an essential tool for guitarists who want to explore a wide range of fuzz tones with maximum control and flexibility.
flexible Fuzz
perfect for pairing with pedals or with any (tube) amplifier
all analog

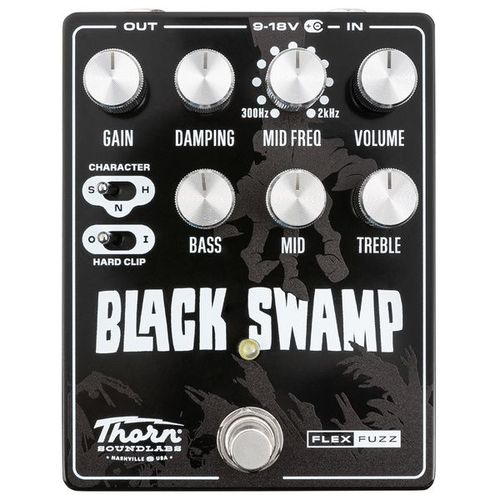

controls: Gain - Damping – Mid Freq – Volume – Bass – Mid – Treble
the Damping control adjusts how much low-frequency sound reaches the distortion circuit
switches: Character S/N/H – Hard Clip O/I
footswitch: Effects Bypass
hardwire true bypass
status LED: Effect On/Off
input: 1/4” (6.35 mm) mono TS jack
output: 1/4” (6.35 mm) mono TS jack
input impedance = 470 kOhm
output impedance = 2.2 kOhm
power supply: 9 – 18V DC – NOTE: do not connect more than 18V DC
current draw: 24 mA
power supply connector: 5.5 x 2.1 mm barrel plug, center negative
power supply not included
no battery operation possible
dimensions: Width x Depth x Height: 3.70" x 4.72" x 1.50" (94 x 120 x 38 mm)
dimensions with switches, jacks & knobs: 3.70" x 4.86" x 2.09"" (94 x 123.5 x 53 mm)
weight: 0.87 lbs. (395 g)
