TECHNICAL DETAILS
Key Features:

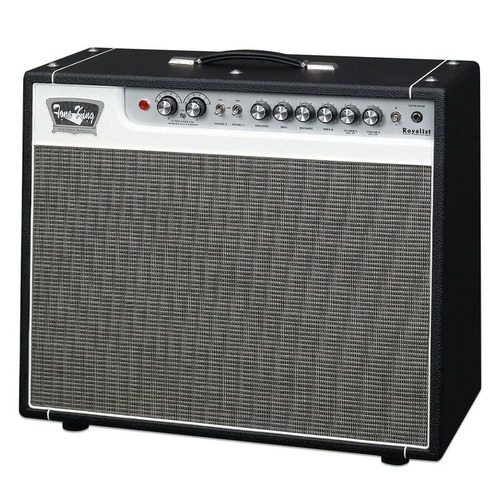

40W All-Tube 1×12” Combo
Two Channels with Volume Control and PULL FAT feature
Three-Position 1964, 1967 and 1970 Voicing Switch, Per Channel
6-Step Iron Man II Attenuator, Per Channel
Wide Variety of Vintage British Tone
Tubes:
V1 = 12AX7 1st Stage Preamp Circuit (Channel A & B)
V2 = 12AX7 2nd Stage Preamp Circuit / Tone Stack
V3 = 12AX7 Phase Inverter
V4 & V5 = EL34 Power Amplifier
V6 = 5AR4 High Voltage Rectifier
Speaker:
Custom Celestion “1660” 12” Speaker
Preamp:
2 Identical Channels, Foot-Switchable
Shared Controls: Volume, Treble, Bass and Presence
Volume Control with PULL FAT feature Per Channel
Three-position 1964, 1967 and 1970 Voicing Switch Per Channel
Iron Man II Attenuator:
Precision tuned frequency compensated reactive load
Dual attenuation controls (one for each channel)
Attenuation steps: 0db, -3db, -9db, -15db, -24db, -36db
Footswitch:
Single Button Channel Footswitch with LED Indicator
25’ Instrument Cable Included
Line Out:
1/4″ Unbalanced Line Out Jack with Level Control
Speaker Impedance Select:
4, 8 or 16 Ohms
Cabinet:
Tongue and Groove Baltic Birch Construction
Dimensions: 12” (L) x 24.5″ (W) x 21” (H)
Weight: 59 LBS
