Ratsbane
Based on an infamous circuit from a classic 1980’s high gain distortion pedal, the Ratsbane is Brian’s answer to the countless requests he has received
to build his interpretation of this much-loved design.
The Ratsbane is sort of my “tribute” to the original Rat circuit, incorporating how I mod the circuit.
If you are looking for a single pedal solution with multiple degrees of gain from light overdrive to full out saturated fuzz tones,
then you’ll surely love the Ratsbane. The Ratsbane is based on a true benchmark sound amongst guitarists that has been heard on thousands of famous recordings.
The full, dynamic range, and sheer sonic force of this circuit is what makes it a true king amongst distortion pedals. Turn the distortion control all the way down for a
deep but powerful gain booster. Crank it up and you will find rich harmonic overtones and a throaty, fuzz-like distortion. The “secret sauce” for this circuit has
always been the filter control. Turn it counter-clockwise to cut straight through the mix with precision and high-frequency attack that lets your tone soar with absolute clarity.
Turn it clockwise to filter the top end, for a warm, buttery, yet clear tone. This natural full-range distortion, mixed with its unique filter control,
delivers a classic cranked tube-amp sound that crosses genres and generations of music.
In typical Wampler fashion, Brian improved the circuit’s flexibility by adding two new switches. The Gain switch offers three distinct choices. In the middle gives you
the “stock” gain for this pedal. Flick it either right or left for 2 additional turbocharged gain stages you can play with. The left position offers a firm, yet smooth boost in gain,
whereas the right delivers an insane level of creamy distortion. The Voice switch subtly alters the compression and clipping of this pedal. It tightens the distortion to be
more manageable with greater levels of gain, while rolling back some of the fuzz qualities, to deliver a modern, high gain distortion.
Technical Details
Built in the U.S.A.
High grade components picked for their superior sound and response
True bypass

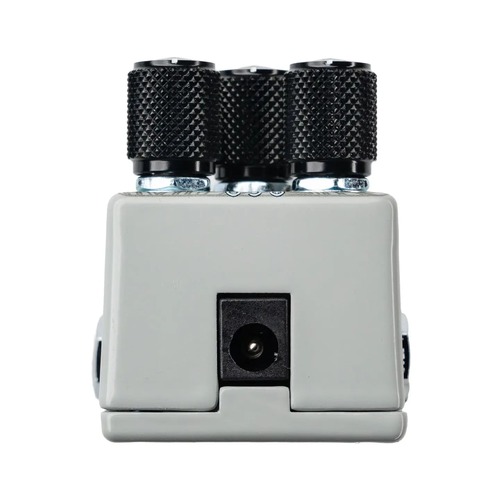

9v – 18v power jack (no battery connector inside)
Power draw: between 2.5mA (9v) and 3.2mA (18v)

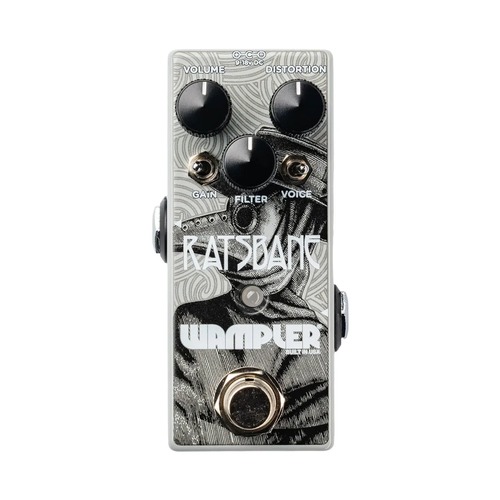

Five controls – Volume, Distortion, Filter rotary, plus 3 way Gain switch and 2 way Voice switch
3PDT True Bypass
Includes Wampler’s limited 5-year warranty
1.5″ x 3.5″ x 1.5″ (38.1mm x 88.9mm x 38.1mm) – height excludes knobs and switches
