ABOUT THE ATTENUATOR.
Keep an Ironman II Mini on your pedalboard and leave the volume wars behind. Perfect for mid-powered tube amplifiers up to 30 watts, this mini version of our
popular 100-watt version attenuates your amp’s volume via the same reactive load and transformer-coupled technology as its big brother. Not only will your amp
breathe properly on any stage, studio, or rehearsal, but you’ll maintain every ounce of your tonal nuance and response. And when it is time to get above the mix,
a finely tuned Solo Mode footswitch is ready to answer the call. So take control of your tone today and see why we call the Ironman II Mini a transparent volume
solution unlike anything out there.

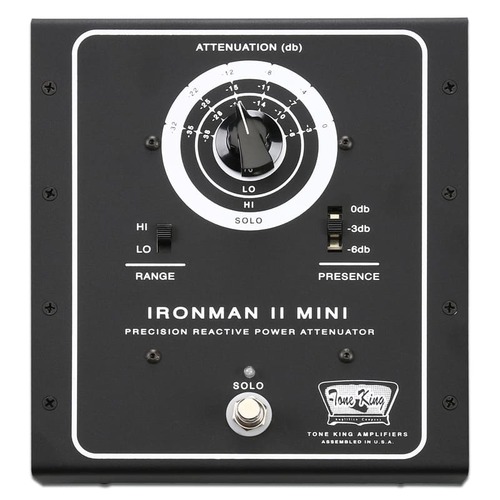

3-POSITION PRESENCE CONTROL.
The Presence switch provides subtle control of brightness and compression. It allows you to tailor the response to match your acoustic environment and to
correct for an overly bright amplifier. Three settings are provided: 0db (brightest setting), -3db, and -6db (darkest setting).

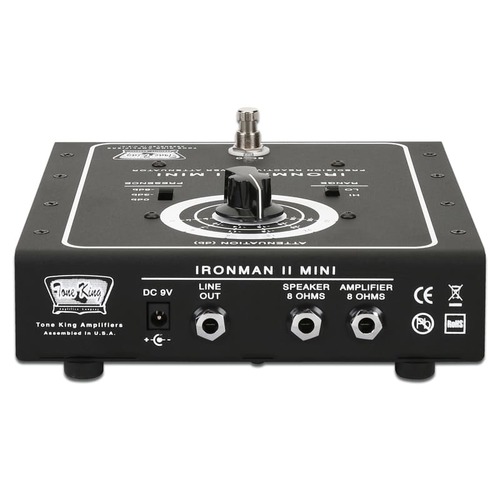

¼” LINE-LEVEL OUTPUT.
The Ironman II’s Line-out provides a line-level signal that can drive another amplifier, mixing board, recording interface, or any other line-level input.
Pair it with a high-quality IR, and you have a powerful way to achieve boutique-level tone via direct recording.
TECHNICAL DETAILS
Power Handling:
30W R.M.S. Maximum
Input Impedance:
Fixed Impedance; 8 Ohms only
Speaker Impedance:
Fixed Impedance; 8 Ohms only
Attenuation Levels:
A total of 18 distinct attenuation levels are available
Attenuation Dials:
Selects between 6 different attenuation steps
SOLO Function:
Selectable 3db/6db reduction in attenuation for solo volume boost
Range Switch:
Selects between the HI and LO attenuation ranges, to control the attenuation level when the SOLO feature is inactive.
Line Out:
Recording / D.I. output, impedance = 10K Ohms; level = -10dbu
LED Indicator:
Indicates status of SOLO function
Power Source:
Used for LED indicator only. Power supplied by either internal batteries (2 x AA cells) or external 9V source.
