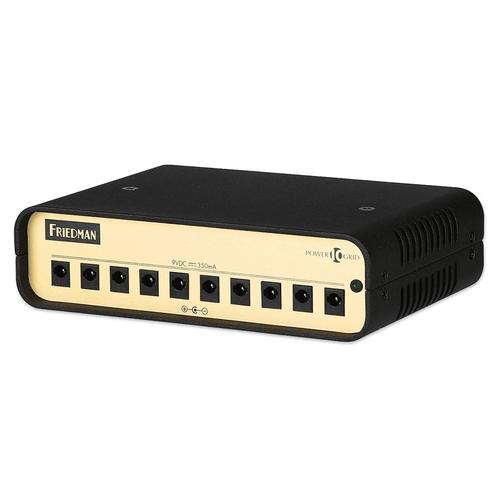

POWER GRID 10
The Power Grid 10 was designed to meet the demands of any player who wants a dead quiet pedal board, that can be taken anywhere and is tour ready.
ISOLATED HIGH CURRENT 9V PEDAL POWER SUPPLY
The POWER GRID 10 was designed to address all of the deficiencies Dave encountered with power supplies from other brands over his 27 year history of designing and building pedal boards for
the biggest touring guitarists and studio producers.
FOR ANY PLAYER WHO WANTS A DEAD QUIET PEDAL BOARD
Can be taken anywhere and is tour ready.

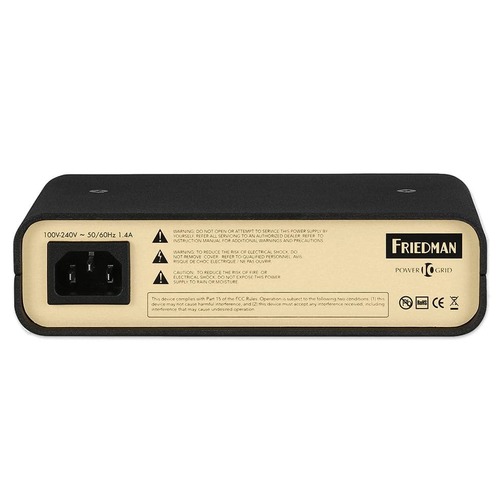

UNIVERSAL POWER FROM 100-240VAC
You can plug it in anywhere in the world.
CABLES INCLUDED
2 x 2.1mm BLACK connector to 2.5mm BLUE connector – polarity reversed – 20″ long – right angle connector on both sides,10 x 2.1mm BLACK connector to
2.1mm BLACK connector – regular polarity – 20″ long – right angle connector on both sides
1 x 2.1mm BLACK connector to 1/8″ phono BLACK connector – 20″ long – right angle connector on 2.1mm connector.
1 x 18 V cable – 2.1mm BLACK connector with additional 2.1mm slave connector on one side to 2.1mm BLACK connector – regular polarity – 20″ long –
right angle connector on both sides.
OUTPUTS

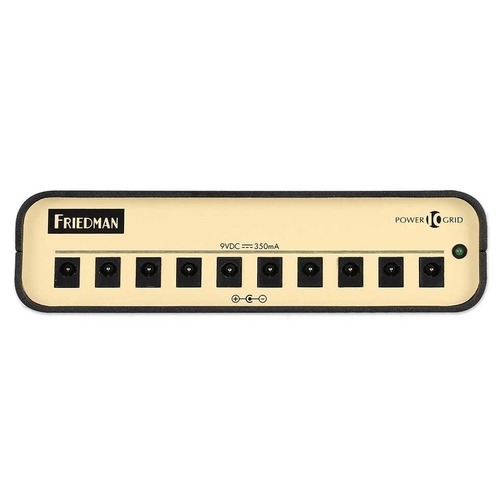

The Power Grid 10 provides 10 isolated outputs – 350mA per output at 9Vdc.
Dimensions: 4.5″ x 6.75″ x 1.75″
Weight: 1.5 lbs.
