home theaters…any application that would require solid and accurate bass reproduction.
Many types of music benefit from bass extension – from Hip-Hop, to House, to Rock. Being able to hear your mix with bass extension is critical to accurately creating your music.
The FC10S subwoofer allows you to hear every detail down to 20Hz, which gets below your hearing threshold, and down to where you actually “feel” it.
Mix Engineers want the confidence to know that their mixes translate well on all types of systems. That is why we included a standby footswitch.
With a click of the included foot pedal, you can turn the bass on or off, and audition your mix with bass extension and without.
The FC10S also has two built-in EQ settings that allow for two different settings – depending on your music: A more conventional Flat response, as well as a “Punch”
setting that is perfect for Dance or other mid-bass heavy music.
For further flexibility, the FC10S studio subwoofer has a variable phase adjustment to fine tune the phase for optimal matching to your L/R monitors (0-180°),
a variable low pass crossover filter control (50-200Hz) and a 80Hz high pass filter (used with foot switch) for satellite connections.
We have also included a ground lift switch as well, to minimize ground hum with some home wiring. Front firing bass-reflex port on front baffle for ease of placement.

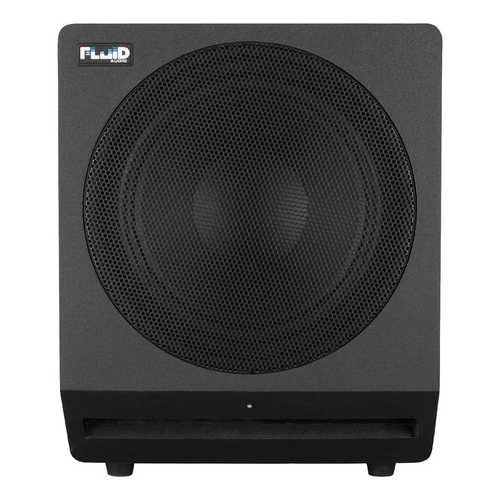

Woofer : 10-inch composite paper cone with high temperature voice coil and damped rubber surround
Amplifier type: Class D
Power Output (Continous): 200 watts
Frequency response: Frequency response: 20-200Hz
Max SPL: Max SPL 107dB Flat / 108dB Punchy setting

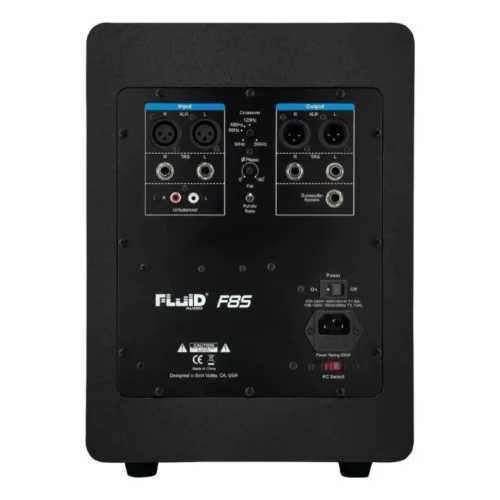

I/O Rear panel:
XLR balanced and 1/4” balanced/unbalanced inputs
RCA inputs
XLR balanced and 1/4” balanced/unbalanced outputs
Subwoofer bypass pedal input (Included)
Rear panel adjustments:
Input gain
Variable phase
Ground lift switch
Punchy Bass / Flat
Variable lowpass filter control: 50Hz-200Hz
Variable Phase control: 0 – 180°
Power Saving: Amplifier standby function to conserve energy
Protection: RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter, external main fuse
Mains Voltage Input: Factory programmed for either 100-120V ~60Hz, 220-240V ~50Hz
Size: 15.25” x 12.5” x 15.5”, 387 x 317 x 394mm
Weight: 28.2 lbs / 12.8 kg
Cabinet: Vinyl-laminated, high acoustic efficient MDF
Other:
80 Hz highpass filter(with foot switch) for satellite connections
Included footswitch allows you to turn FC10S on and off for auditioning with bass and without
