Quantity: Single Powered Monitor
LF Driver: Dual 8″ active
MF Driver: 5"
HF Driver: AMT
Wattage: 675 Watts

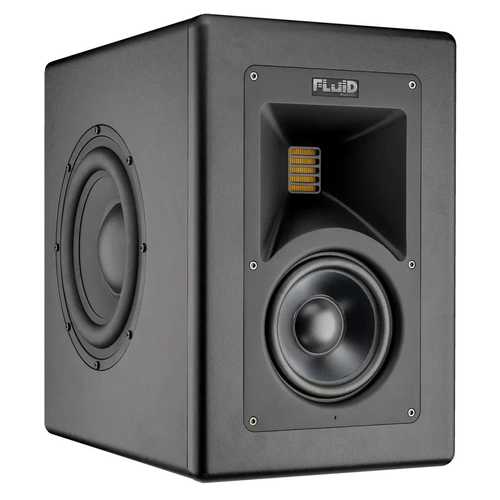

Image 2 Professional 3-Way Reference Studio Monitor is a dedicated nearfield/midfield workhorse. Using the latest DSP and Class-D amplification, Fluid Audio has pushed the limits to create
stunning results. Delivering accurate imaging, extremely flat frequency response, and incredible bass extension with very low distortion in a closed cabinet.
With Sonarworks SoundID Reference integration, the room calibration correction will import directly into embedded platform of the monitor.
Giving users the ability to create their own calibration profile for their monitor setups to remove unwanted coloration and experience the most
accurate studio reference sound for any studio or home environment.
2 in 1 monitor: A full range mixing and mastering system that can switch into cubemix mode at the press of a footswitch. Cubemix mode enables engineers to
dial-in low end and midrange levels for even playback on many “bass challenged” devices. It further helps with the adjustment of vocals, nailing the kickdrums and overall balance.
It’s future-ready USB port expands the incredible functionality and provides the ability to upload and run exported room correction files natively at the monitor level,
as well switching between profiles (supports loading up to 4 different SoundID Reference profiles) and cubemix mode.
The newly developed AMT tweeter ( Air Motion Transformer ) delivers precise, detailed response, expansive headroom, and low distortion,
while the aluminum cone mid-range driver utilizes a shorting ring within its motor structure to substantially reduce harmonic distortion.
Focusing the magnetic flux and concentrating it within the voice coil gap reduces modulation movement of the voice coil which makes the variation of system
inductances more linear as input current varies. The end result is accuracy so clean; mixing takes on a whole new flow.
The opposed dual 8″ ultra-long-throw woofers use Fluid’s Vi-bracer (TM) system to apply outward force that cancels internal reactions before they reach the cabinet.
This controlled compression improves dynamics, reduces room interaction, and maintains clean low-frequency performance down to 38Hz (+/- 3dB).
Each woofer is driven by a dedicated 225W Class-D amplifier, delivering precise and effortless power across the full range.
Driving the entire system is the newly developed Class-D Quad amplifier. Spending the most development time on this important element,
the amplifier has extremely low self-noise, very low distortion, improved THD+N performance, improved IMD performance, and lower output impedance.
The sealed enclosure design provides a natural, 6db/oct roll off for a more controlled low frequency response. This translates into less likelihood of unwanted
interaction with the room, which means these monitors are less sensitive to positioning.
Mixing or mastering on the Image 2 will deliver professional results that are more accurate, and more effortlessly achieved than ever before.
Making it one of the best speaker for music production.
When registering your Image 2, you will receive a fully functional 60-day free trial. No credit card required, no hidden conditions.
A guide on how to work with our DCT software, upload and measurment.
Information about Sonarworks SoundID Reference and integration with Fluid Audio Image 2 can be found on Sonarworks homepage
SoundID Reference integration
Import room correction files directly to Image 2, store up to 4 profiles, and switch at the monitor. Achieve consistent reference sound in any space.
Native profile storage (up to 4)
USB profile upload workflow
Per-room or per-position presets
2 in 1: CubeMix mode
Footswitch to a mid-focused reference that reveals bass-limited playback behavior. Set vocals, kick, and midrange with confidence.
Instant A/B with footswitch
Faster low-end decisions
Better small-speaker translation
Max SPL: 115 dB (Dual Monitors) 112dB (Single)
Frequency Response: ± 2.2dB 40Hz-27kHz ; -3dB @ 38.1Hz -6dB @35.2Hz
Bass Response: -3dB @40Hz, Q=0. 707 Slope = 24dB/octave
Crossover:
Bass / Mid : 154Hz
Mid / Treble : 2800 Hz
Driver Dimensions:
2 x 8" Bass + 1 x 5" Midrange + ⌀ 1.1" x 1.7" AMT Tweeter
2 x ⌀ 203 mm Bass + ⌀ 130 mm Midrange + ⌀ 28 x 43 mm AMT Tweeter
AMT Tweeter unfolded size 4.5" x 1.1" / 114 x 28 mm (total radiation area)
Amplifier Power:
2 * 225 W Bass (Class D)
150 W Midrange (Class D)
75 W Treble (Class D)
Signal Processing:
AD Converter : 24 bit
Internal sample rate : 192kHz
Audio Input Connectors:
Analog XLR/TRS
Digital AES (supports AES/EBU)
SPDIF connection

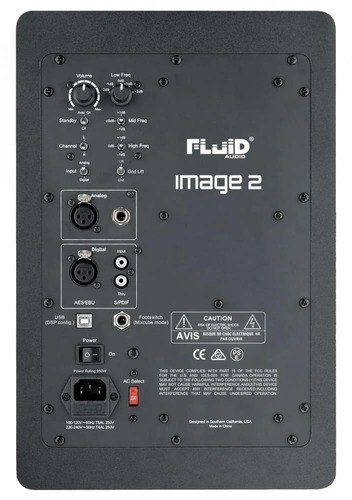

Acoustic adjustments rear panel:
High Freq: -1, 0, +1
Mid Freq: -1, 0, +1
Low Freq: -2, -1, 0, +1, +2
Rear panel other:
Digital / Analog selector
Channel sellect digital input L/R
Auto standby On/Off
GND lift
Footpedal input for CubeMix mode
