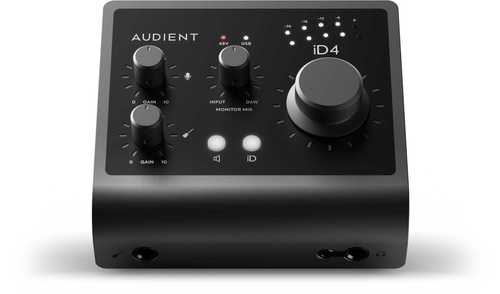

Introducing iD4, our ultracompact but hugely powerful audio interface designed to let you make music like a pro. Though small in size iD4 is big on
features – packing in one fully analogue Audient Console Mic Preamp, Advanced 32-bit AD/DA Converters, one JFET instrument output and Dual
Headphone Outputs all in a 13 x 12cm footprint. Plus iD4 is completely bus powered, letting you capture studio quality recordings at home and on the road.
1 x Audient Console Mic Preamp
Class Leading AD/DA Converters
1 x JFET Instrument Input
2 x Line Outputs
1 x Dual Headphone Output
Speaker On/Off Button
ScrollControl
Monitor Pan
Monitor Mix (Direct Monitoring)
Audio Loop-back
True Phantom Power over USB
USB3.0 Bus Powered
24bit/96khz
Mac, Windows & iOS Compatible
All Metal Design
Free Software + Plugins
D.I / Instrument Input
RANGE:40dB
LINEUP:12dBu = 0dBFS
THD+N @ 0dBu:0.1%
SNR:100dBu A-Weighted
FREQUENCY RESPONSE – MIN GAIN:±0.5dB 10Hz to 20kHz
Microphone Preamplifier
GAIN RANGE: 58dB
LINEUP:12dBu = 0dBFS
MIC MAX INPUT LEVEL:12dBu
LINE MAX INPUT LEVEL:21dBu
INPUT IMPEDANCE (Mic):2.8k
INPUT IMPEDANCE (Line):>8k
PHANTOM POWER: (48V +/-4V @ 10mA/Channel)
THD+N @ 0dBu:0.00170%
THD+N @ 0dBu MAX GAIN:<0.04%
SNR:101dBu A-Weighted
EIN:129dB A-Weighted
CMRR @ 1k:>75dB
FREQUENCY RESPONSE – MIN GAIN:±0.5dB 10Hz to 40kHz
Analogue to Digital Converter
THD+N @ -1dBFS:0.001%
DYNAMIC RANGE:120dB A-Weighted
FREQUENCY RESPONSE:±0.5dB 10Hz to 40kHz
Line Outputs (DAC)
LINEUP:12dBu = 0dBFS
THD+N @ -1dBFS:0.0006%
DYNAMIC RANGE:125.5dB A-Weighted
CROSSTALK:>120dB
FREQUENCY RESPONSE:±0.1dB 10Hz to 40kHz
1/4” TRS JACK:Tip (Hot), Ring (Cold) & Sleeve (Shield)
Headphone Outputs
LINEUP:18dBu = 0dBFS
THD+N @ -1dBFS:0.0009%
DYNAMIC RANGE:125.5dB A-Weighted
CROSSTALK:>116dB
FREQUENCY RESPONSE:±0.1dB 10Hz to 40kHz
MAXIMUM LEVEL @ 30R:2.59V Peak, 1.827V RMS, 223mW
MAXIMUM LEVEL @ 62R:4.18V Peak, 2.95V RMS, 280mW
MAXIMUM LEVEL @ 600R:7.72V Peak, 5.46V RMS, 100mW
1/4” TRS JACK:Tip (Left), Ring (Right) & Sleeve (Shield)
USB-C High Speed
BUS POWER:
MIN REQUIREMENT:0.9A @ 5V >=USB 3.0 Port
MAX REQUIREMENT:1.5A @ 5V USB-C: Provides higher headphone outputs levels
No. of INPUT CHANNELS:2 (2 Analogue)
No. of OUTPUT CHANNELS:2 (2 Analogue)
DSP MIXER LATENCY ROUND TRIP (in-to-out):44.1kHz 0.65mS
DSP MIXER LATENCY ROUND TRIP (in-to-out):48.0kHz 0.6mS
DSP MIXER LATENCY ROUND TRIP (in-to-out):88.2kHz 0.33mS
DSP MIXER LATENCY ROUND TRIP (in-to-out):96.0kHz 0.31mS
