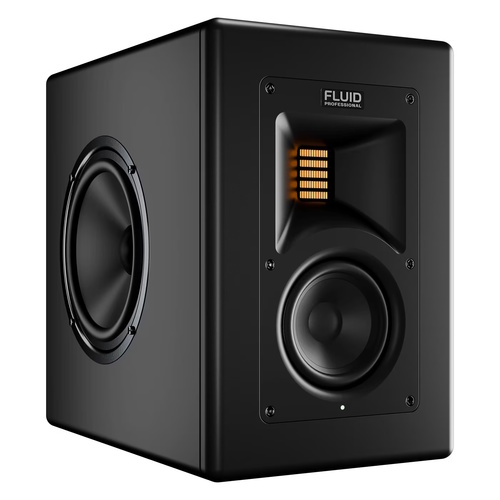

Image 1 is a dedicated nearfield/midfield workhorse. Using the latest DSP and Class-D amplification, Fluid Professional has pushed the limits to create stunning results. The Image 1 delivers accurate imaging, extremely flat frequency response, and incredible bass extension with very low distortion.
With support for Sonarworks SoundID Reference calibration import, the room calibration software will be integrated directly into Image 1 studio monitors.
Giving users the ability to create their own calibration profile for their monitor setups to remove unwanted coloration and experience the most accurate studio reference sound for any studio or home environment.
The Image 1 is also a 2 in 1 monitor: a full range mixing and mastering system that can switch into CubeMix mode directly via the DCT Software. CubeMix mode enables engineers to fine-tune low end and midrange levels for consistent playback across “bass-challenged” devices. It also helps refine vocal balance, kick definition, and overall mix translation.
It's future-ready network port expands the Image 1’s incredible functionality and provides the ability to upload and run exported room correction files natively at the monitor level, as well switching between profiles (Image 1 supports loading of 4 different SoundID Reference profiles) and cubemix mode and more.
The newly developed AMT tweeter delivers precise, detailed response, expansive headroom, and low distortion, while the 5″ aluminum cone mid-range driver utilizes a shorting ring within its motor structure to substantially reduce harmonic distortion. Focusing the magnetic flux and concentrating it within the voice coil gap reduces modulation movement of the voice coil which makes the variation of system inductances more linear as input current varies. The end result is accuracy so clean; mixing takes on a whole new flow.
The opposed dual 6.5" ultra long throw woofers are coupled through Fluid’s Vi-bracer (TM) system, which applies controlled outward pressure to cancel reaction forces at the source. This design enhances cabinet stability and delivers an extended, balanced low-frequency response (+/- 3dB 40Hz–27kHz; +/- 1.5dB 80Hz–22kHz). Each woofer is powered by a dedicated 180W Class-D amplifier for precise, distortion-free control.
Driving the entire system is the newly developed Class-D Quad amplifier. Spending the most development time on this important element, the Image 1 amp has extremely low self-noise, very low distortion, improved THD+N performance, improved IMD performance, and lower output impedance. The Image 1’s sealed enclosure design provides a natural, 6db/oct roll off for a more controlled low frequency response. This translates into less likelihood of unwanted interaction with the room, which means these monitors are less sensitive to positioning.
Mixing or mastering on the Image 1 will deliver professional results that are more accurate, and more effortlessly achieved than ever before.
Making it one of the best speaker for music production.
|
Max SPL
|
108dB (1 meter)
|
| Frequency Response |
+/-4.6dB 40Hz – 20kHz; +/-2.0dB 80Hz – 20kHz
|
| Bass Response |
-3dB @45Hz, Q=0. 707 Slope = 24dB/octave
|
| Crossover |
Bass / Mid : 190Hz
Mid / Treble : 3000 Hz
|
| Driver Dimensions |
2 x 6.5" Bass + 1 x 4" Midrange + ⌀ 1.1" x 1.7" AMT Tweeter
2 x ⌀ 165 mm Bass + ⌀ 101 mm Midrange + ⌀ 28 x 43 mm AMT Tweeter
AMT Tweeter unfolded size 4.5" x 1.1" / 114 x 28 mm (total radiation area)
|
| Amplifier Power |
2 * 150 W Bass (Class D)
100 W Midrange (Class D)
75 W Treble (Class D)
|
| Signal Processing |
AD Converter : 24 bit
Internal sample rate : 192kHz
|
| Audio I/O Connnectors |
Analog XLR
XLR Digital AES / EBU
XLR Digital AES / EBU Thru
|

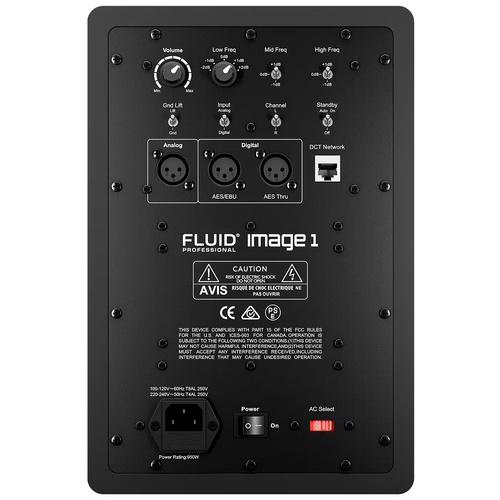

| Acoustic adjustments rear panel |
High Freq: -1, 0, +1
Mid Freq: -1, 0, +1
Low Freq: -2, -1, 0, +1, +2
|
| Rear panel other |
Digital / Analog selector
Channel sellect digital input L/R
Auto standby On/Off
GND lift
Network RJ45 connector for DCT
|
